How to Choose the Right Size Piano Caster Cups: A Step-by-Step Guide

Choosing the right piano caster cups is crucial for protecting your floors, stabilizing your piano, and enhancing its appearance. However, the first step is ensuring you get the correct size by accurately measuring your piano's casters. In this guide, we’ll show you how to measure your piano's wheels so you can select the perfect caster cups that fit securely and provide the support your piano needs.

 Explore our full selection of piano caster cups to protect your floors and support your piano.

Why Measuring Your Piano Casters Is Important

Properly fitted caster cups provide stability and protect flooring from the weight and movement of a piano. Whether you have a grand, upright, or digital piano, the right caster cups can prevent floor damage, reduce noise, and add a polished look to your piano room. Accurate measurements are essential to ensure the caster cups fit securely and provide these benefits.

Understanding Caster Cup Measurements

Piano caster cups have two key measurements:

  • Outer Diameter: The overall width of the cup.
  • Inner Diameter: The bowl area where the piano wheel sits.

Caster cups are listed by their outer diameter, with the inner diameter measurement included in the product description. The inner diameter is where the piano wheel goes, so your piano wheel measurement needs to be at least 1/4" smaller than this diameter (to allow for clearance).

how to measure piano caster cups

Step-by-Step Guide: How to Select the Right Size Caster Cups

Step 1: Measure the Diameter of the Casters

  • Place the ruler or tape measure across the widest part of the wheel.
  • Measure from one edge of the wheel to the opposite edge. This will give you the diameter of the caster.

Step 2: Measure the Depth of the Wheels

  • Measure the depth of the piano wheel to ensure it will fit inside the caster cup in all directions.

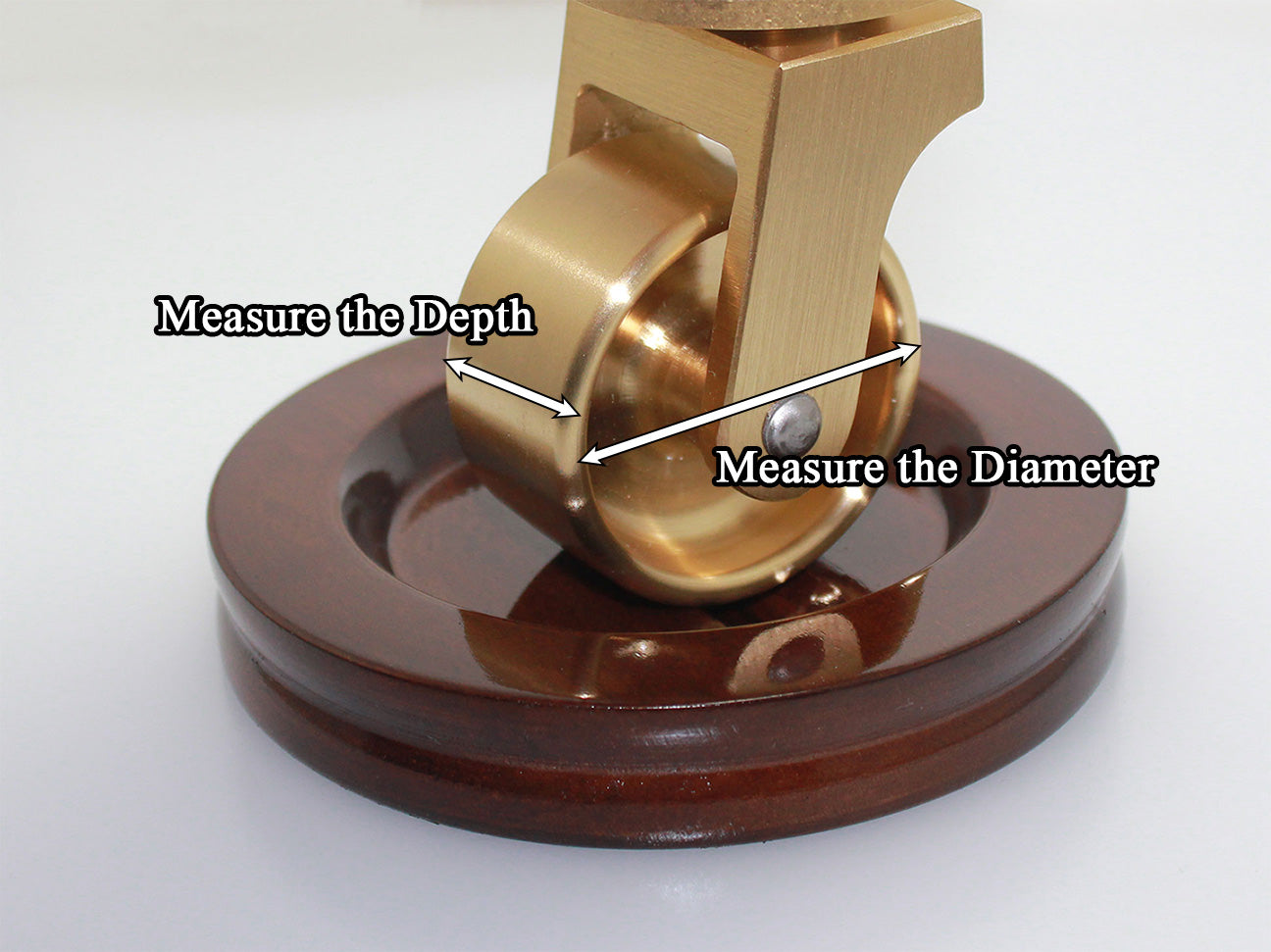

Diagram showing how to measure piano caster wheel diameter

Step 3: Determine the Size of the Caster Cups

  • Piano caster cups have two measurements — outer diameter and inner diameter (they are listed by outer diameter). Ensure your wheel’s diameter and depth fit within the inner diameter (bowl area) of the cup.
  • Allow at least a 1/4" difference between your wheel and the cup’s inner diameter for easy placement. For example, if your wheels are 1.75" in diameter, select a caster cup with at least a 2" inner diameter.

Step 4: Consider Piano Size and Weight

  • For larger, heavier pianos, select caster cups with a wider outer diameter. These distribute weight over a larger area, reducing pressure on floors.
  • Hardwood piano caster cups support more weight and are more attractive than plastic options.

For heavier pianos or frequent movers, consider our piano dollies for added support and quick movement.

Summary for Choosing Piano Caster Cups

  • Measure your piano’s caster wheel diameter at its widest point.
  • Choose a caster cup with an inner diameter at least 1/4" larger than your wheel for easy fit.
  • Larger pianos benefit from caster cups with a wider outer diameter to better distribute weight.
  • For the best floor protection, select hardwood caster cups
  • When in doubt, contact us — we’re happy to help you select the right caster cups for your piano.
